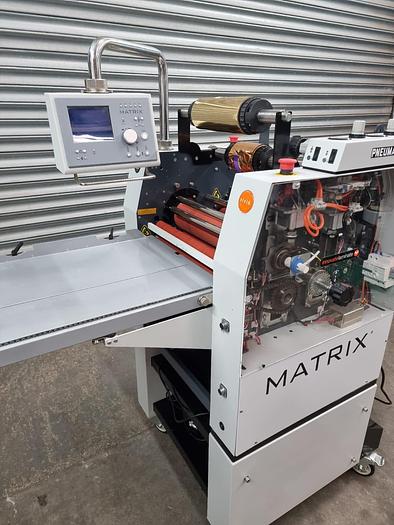

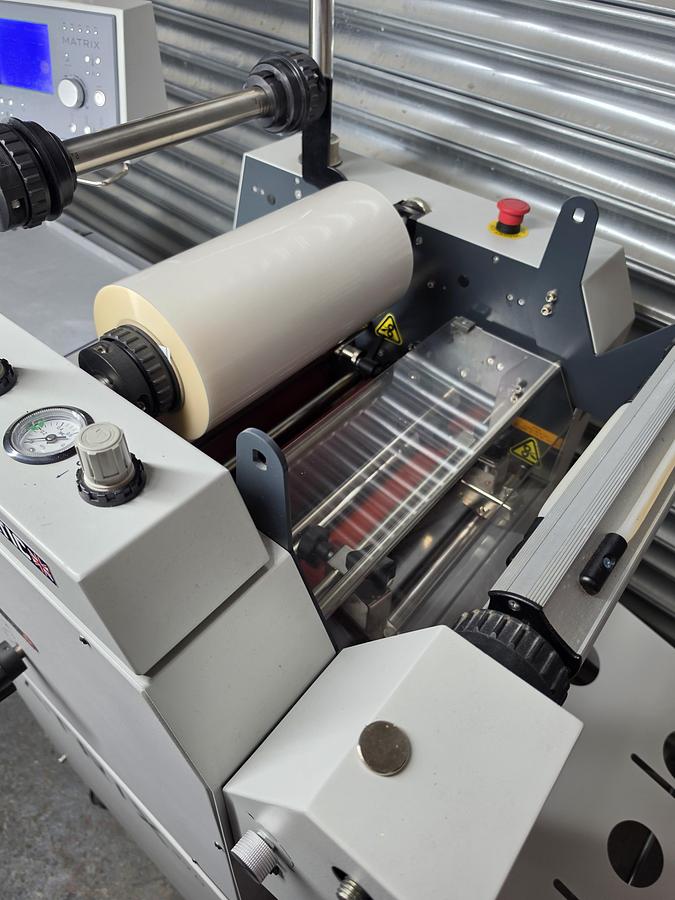

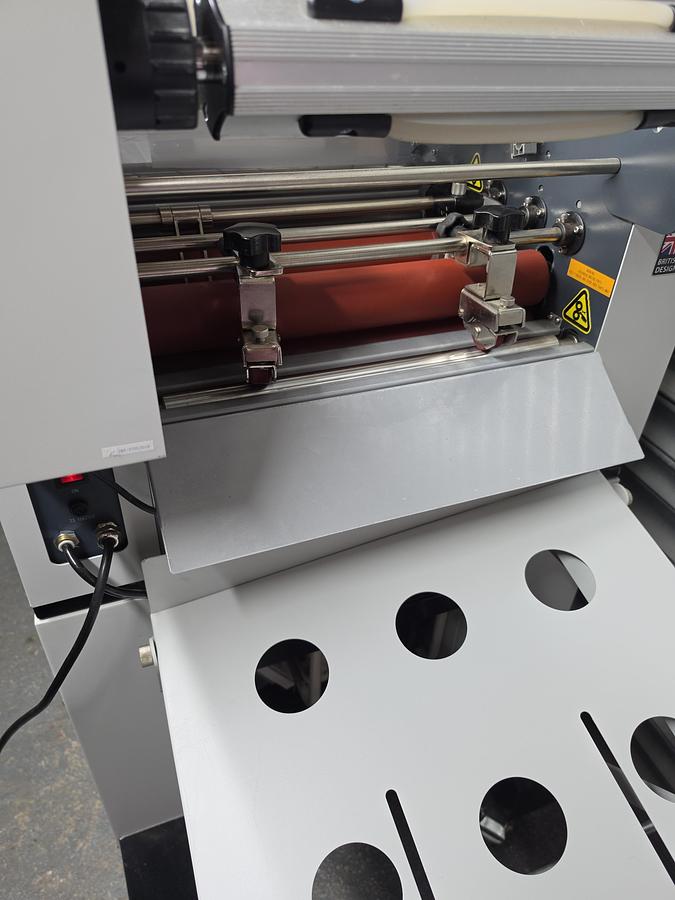

Matrix 370 pneumatic with Foil

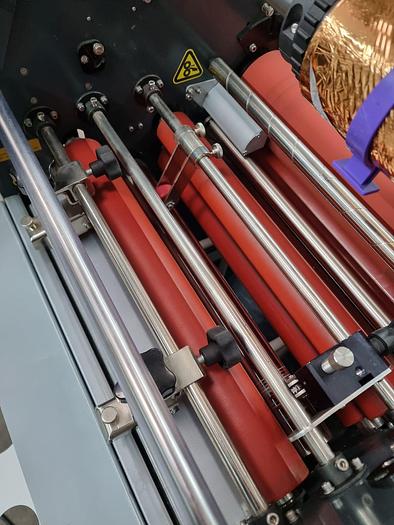

The Matrix MX-370P SRA3 Pneumatic single-sided laminating, digital foiling and special effects system. Create eye-catching finishes using foil and special effects with the pneumatic option, achievable with adjustable pressure rollers.

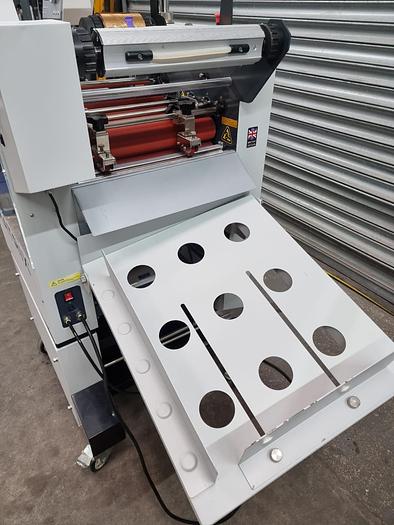

• Semi-automatic feed

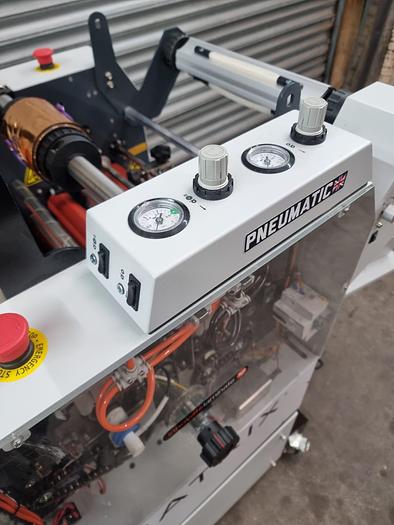

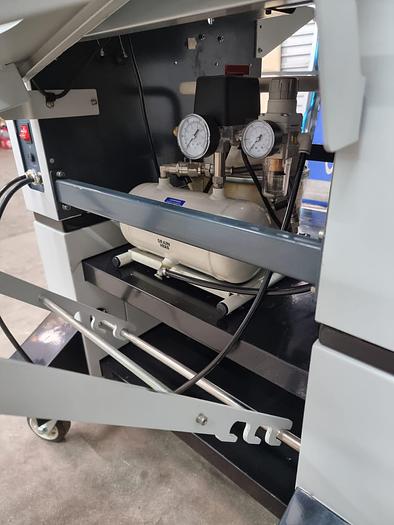

• Pneumatic pressure

• Anti-curl technology

• Automatic separator

• Multifunctional - laminate, foil & create spot UV-style effects

Specifications:

Max. Mechanical Speed (m/ft/min)    10m/33ft

Max. Lamination Film Width (mm/inches)    340mm/13”

Minimum Paper Thickness (gsm/lbs)    135gsm/90lbs

Maximum Sheet Width (mm/inches)    420mm/17”

Warm-up Time (mins)    10

Temperature Range (°C/°F)    0-140°C/32-284°F

Power Supply (V)    220/240

Power Supply Required (Amps)    13

Power Consumption (W)    2200

Overall Dimensions (mm/inches)    800x1800x1400mm/31x71x55”

Gross Machine Weight (Kg/lbs)    190Kg/419lbs
