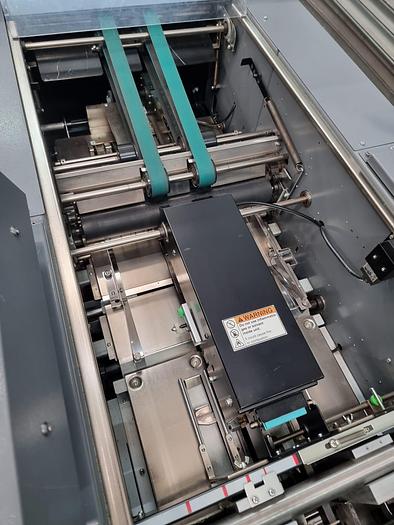

Duplo 5000 Hand Feed bookletmaker and trimmer

Sold as a Hand Feed Bookletmaker (very rare)

Duplo sewing and folding module DBM 500:

Min. paper size: (l x w) 170 x 120 mm

Max. paper size: (l x w) 500 x 350 mm

Maximum booklet thickness: 5 mm

Maximum number of stapled sheets: 25 sheets 80g / m2

Production speed: 4500 sets / h (A4 format 10 sheets)

Power supply: 220-240V, 50Hz, 3,8A

Weight: 412 kg

Duplo front cut DBM 500T:

Paper size before cutting: (l x w) min. 85 x 120 mm

Paper size before cutting: (l x w) max. 250 x 356 mm

Final format: 75 – 250 mm

Paper range: 64 – 157 g / m2

Speed: Up to 4500 booklets / h (A4 10 sheets)

Trimming thickness: 50 sheets 80 g / m2

Cutting width: 1 – 25 mm

Power supply: 220 – 240 V, 50/60 Hz, 3.3 A.

Weight: 241kg
